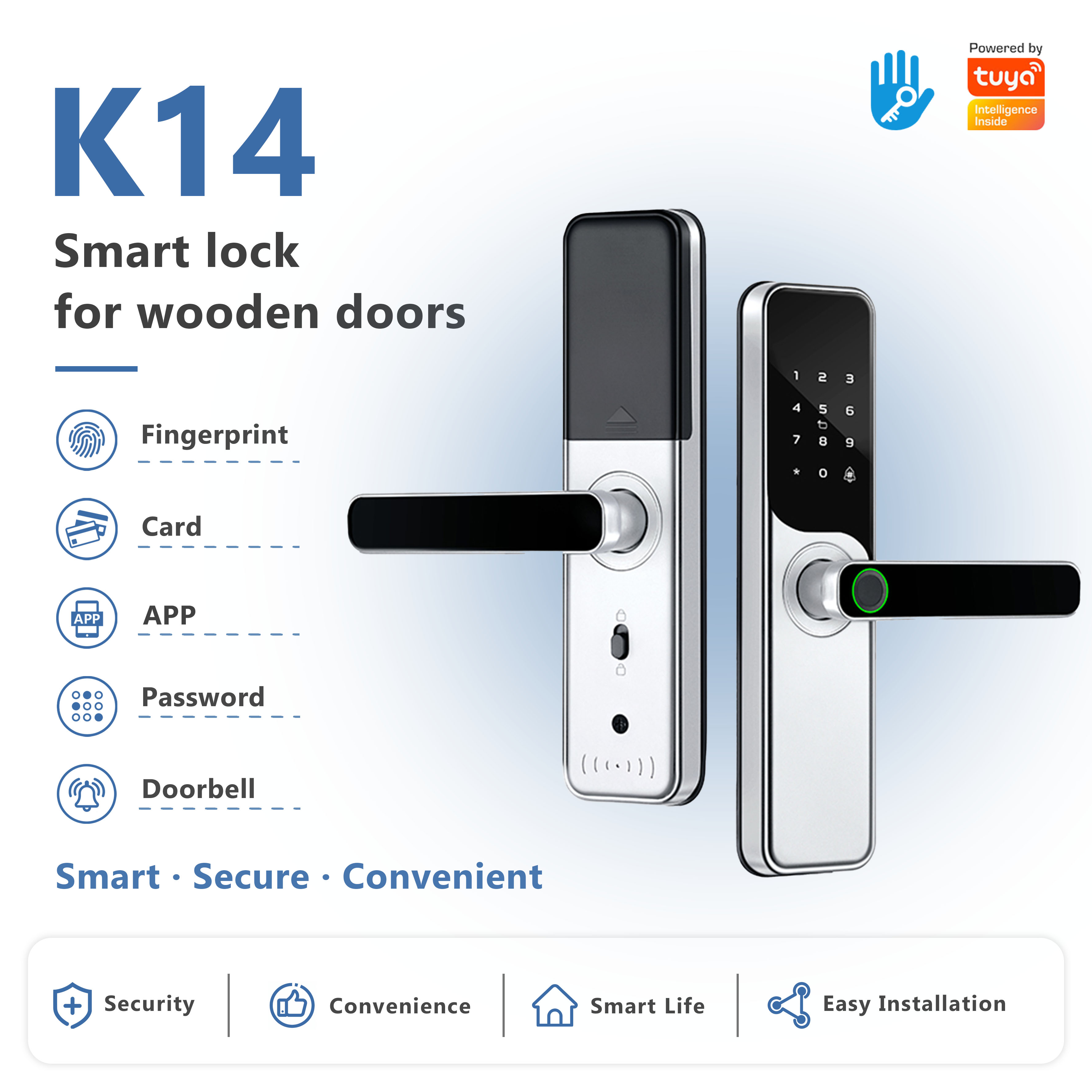

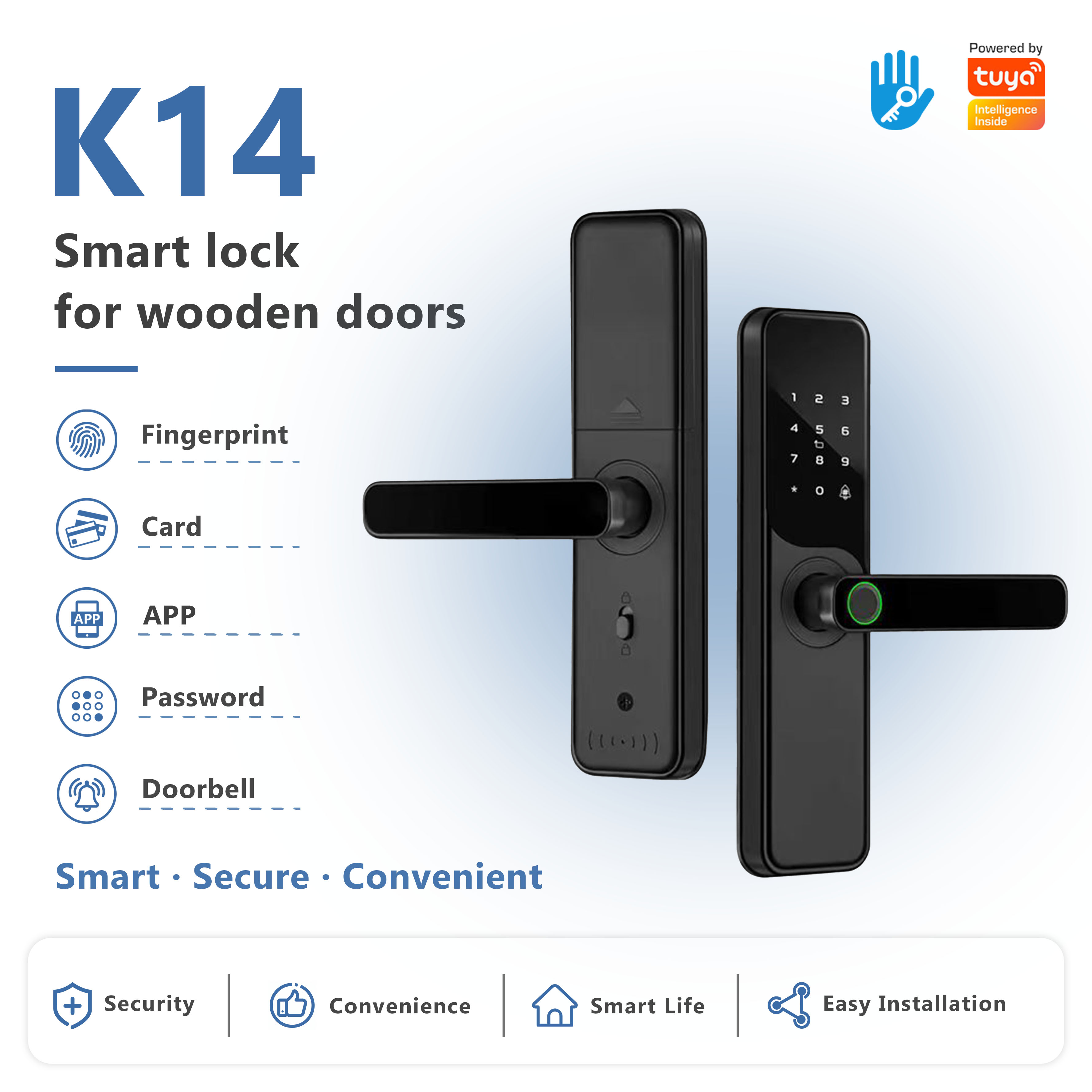

K14 Smart Wooden Door Lock
The K14 smart wooden door lock is designed for wooden doors, bedroom doors, office doors and interior doors.
It supports fingerprint, PIN code, RFID card, mechanical key, and optional Tuya Smart App or TTLock control, making it suitable for daily home and office use.
K14 is made of aluminum alloy, with a clean appearance, stable structure and easy installation.
It is suitable for 35–60mm door thickness.

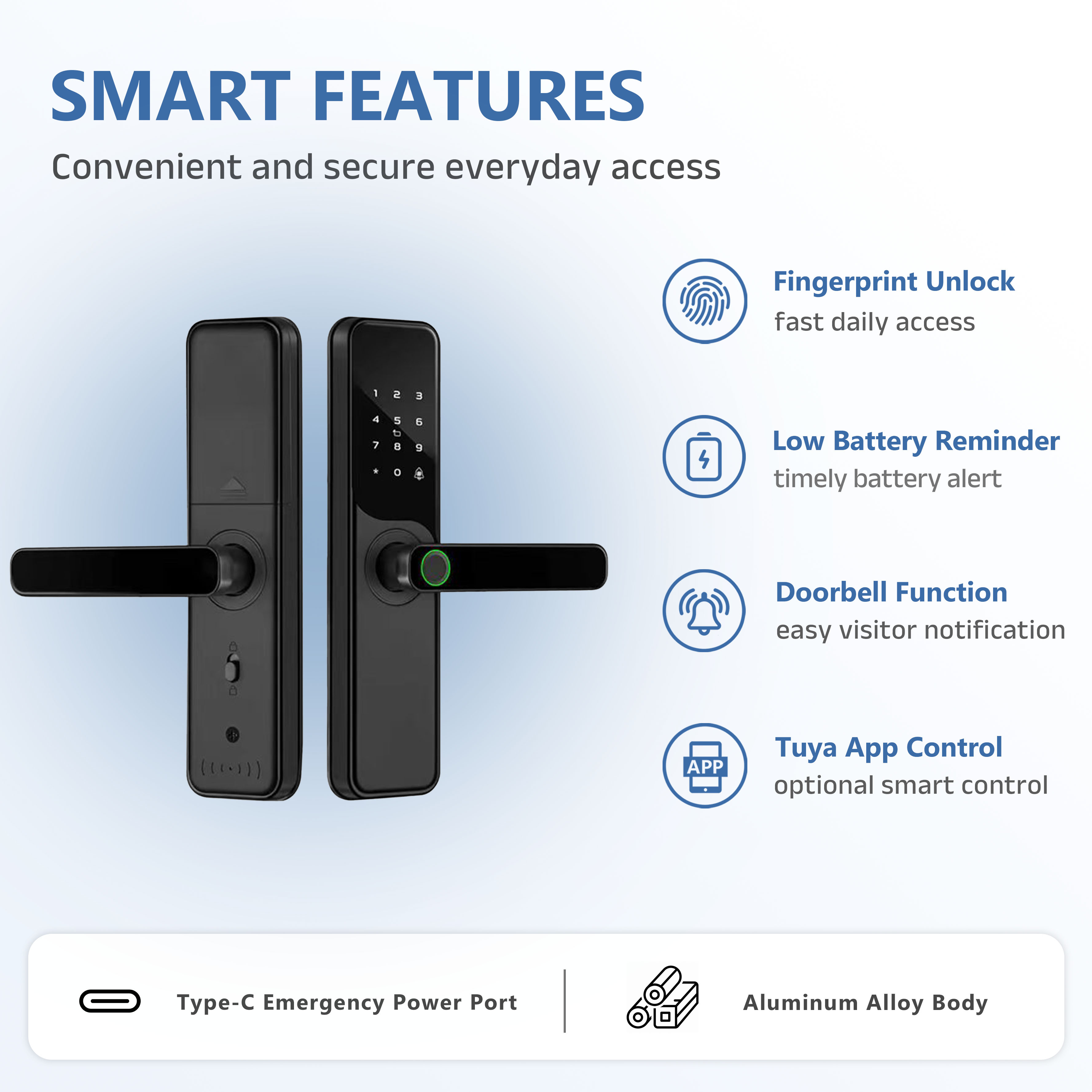

Main Features
Fingerprint, PIN code, RFID card, mechanical key and optional App unlocking
Compact smart lock design for wooden doors
Suitable for bedroom doors, office doors and interior doors
Type-C USB emergency power interface
AA battery power supply, 4.5V–6V
Supports 100 fingerprints, 100 PIN codes and 100 cards
Aluminum alloy material for stable daily use
Multiple mortise size options available

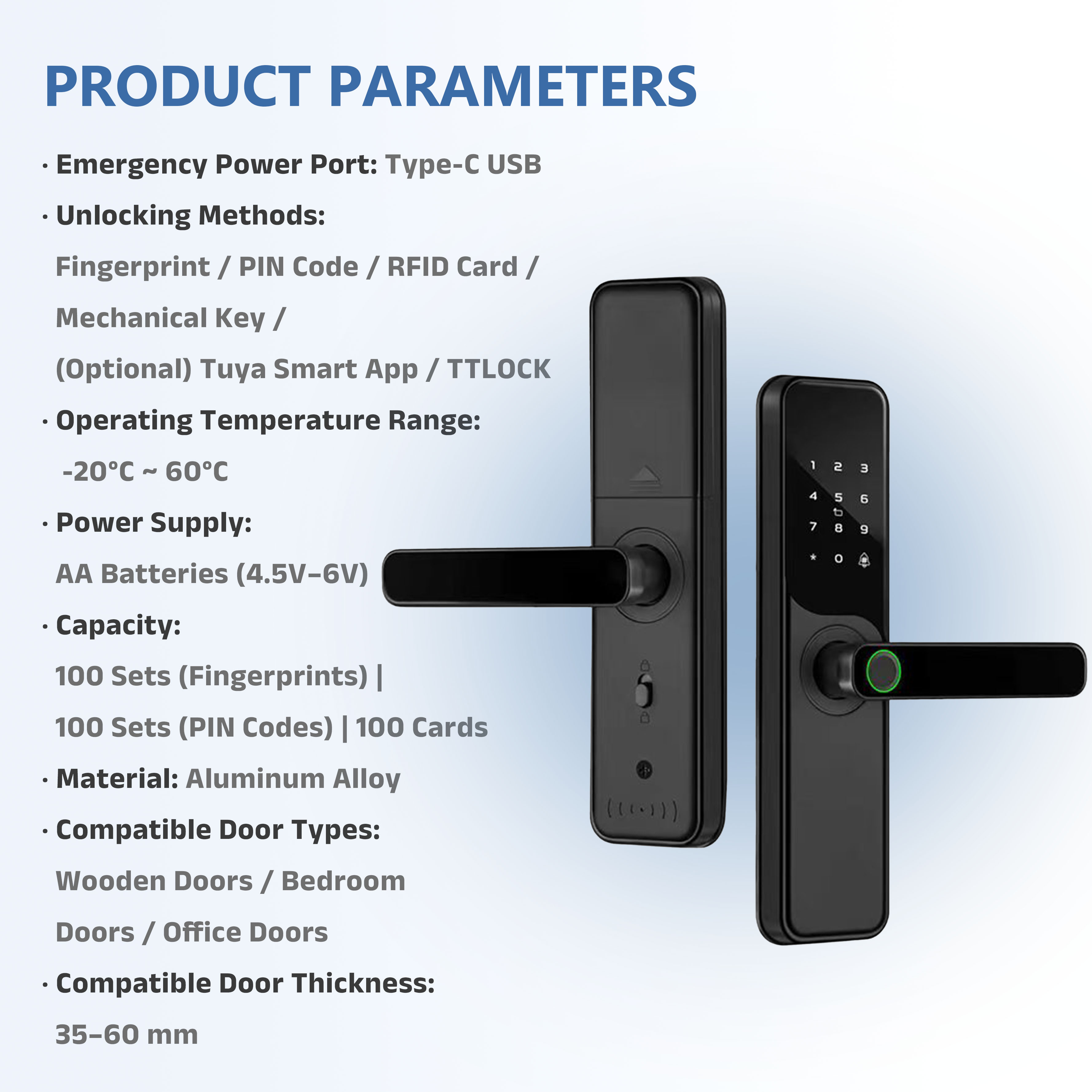

Product Parameters
| Model | K14 |
| Product Type | Smart Wooden Door Lock |
| Unlocking Methods | Fingerprint / PIN Code / RFID Card / Mechanical Key / Optional Tuya Smart App / TTLock |
| Emergency Power Interface | Type-C USB |
| Power Supply | AA Batteries, 4.5V–6V |
| Operating Temperature | -20°C to 60°C |
| Capacity | 100 Fingerprints / 100 PIN Codes / 100 Cards |
| Material | Aluminum Alloy |
| Compatible Door Types | Wooden Door / Bedroom Door / Office Door |
| Compatible Door Thickness | 35–60mm |

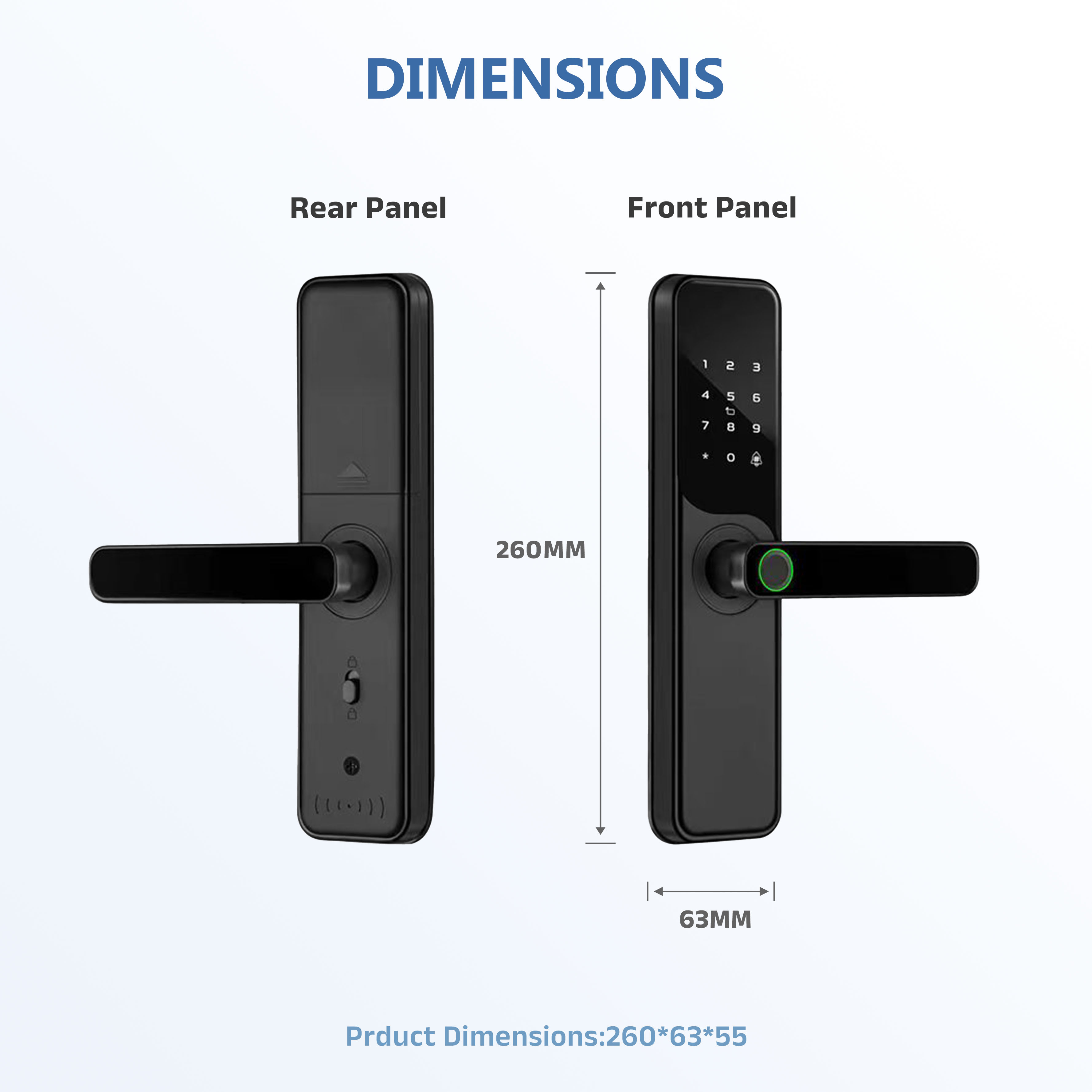

| Product Size | 260mm × 63mm |
Optional Configurations
Fingerprint / PIN Code / Card / Mechanical Key / Tuya Smart App / TTLock

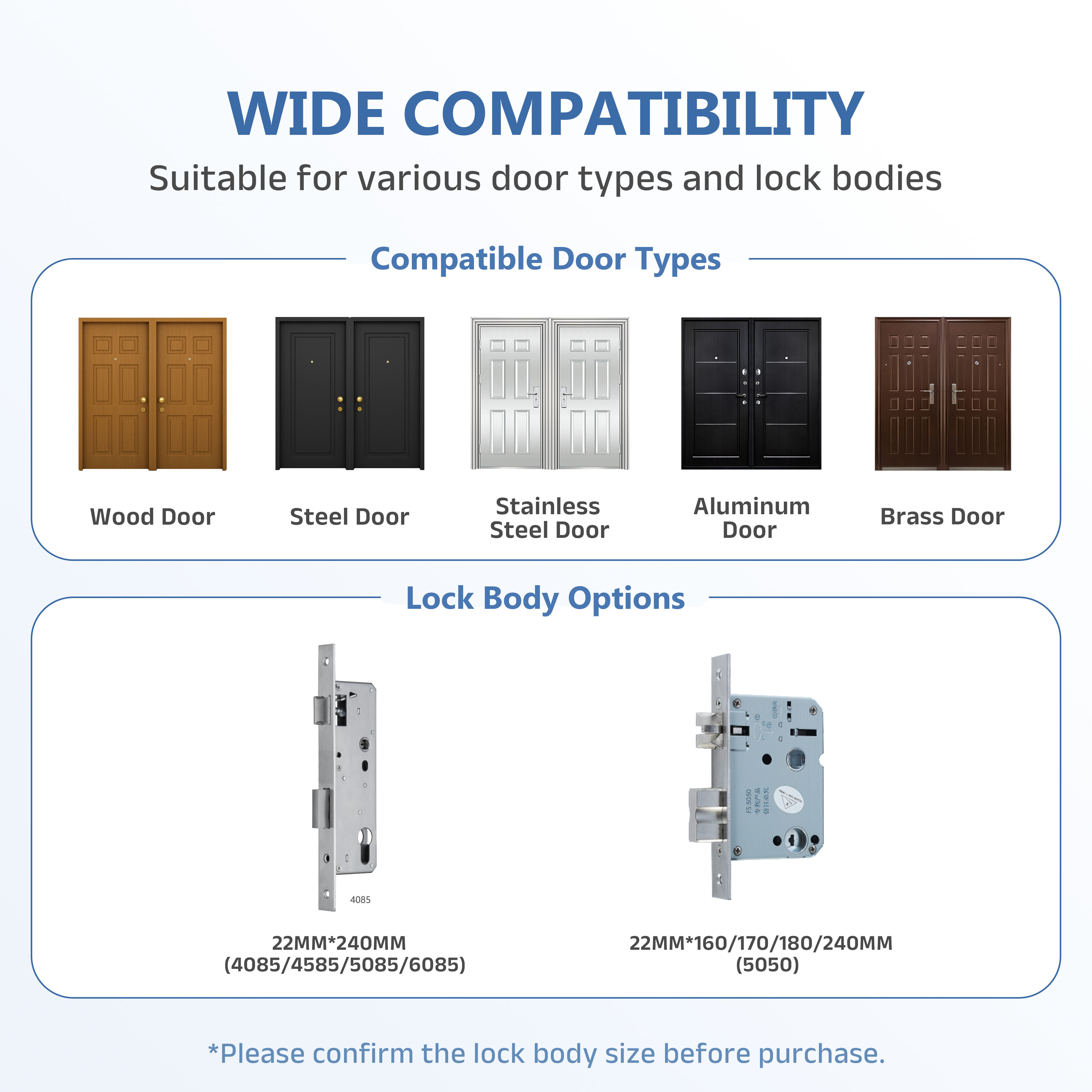

Mortise Size Options
22mm × 240mm (4085 / 4585 / 5085 / 6085)
22mm × 160 / 170 / 180 / 240mm (5050)
Application Range
K14 is suitable for wooden doors, bedroom doors, office doors, apartment doors and rental houses. It is a practical interior wooden door smart lock for users who need fingerprint unlocking, password access, card access and optional App control.
