Z13 Smart Security Door Lock
The Z13 smart security door lock is suitable for wooden doors, bedroom doors, office doors and modern interior access applications.
It supports fingerprint, PIN code, RFID card, mechanical key, and optional Tuya Smart App or TTLock control, providing users with a secure and convenient door lock solution.
Z13 is made of aluminum alloy and equipped with a Type-C USB emergency power interface. It uses AA battery power supply for daily operation.
It is suitable for 35–120mm door thickness.
Main Features
Fingerprint, PIN code, RFID card, mechanical key and optional App unlocking
Smart security door lock design for wooden doors
Suitable for bedroom doors, office doors and interior doors
Type-C USB emergency power interface
AA battery power supply, 4.5V–6V
Supports 100 fingerprints, 100 PIN codes and 100 cards
Aluminum alloy material for stable daily use
Compatible with 35–120mm door thickness

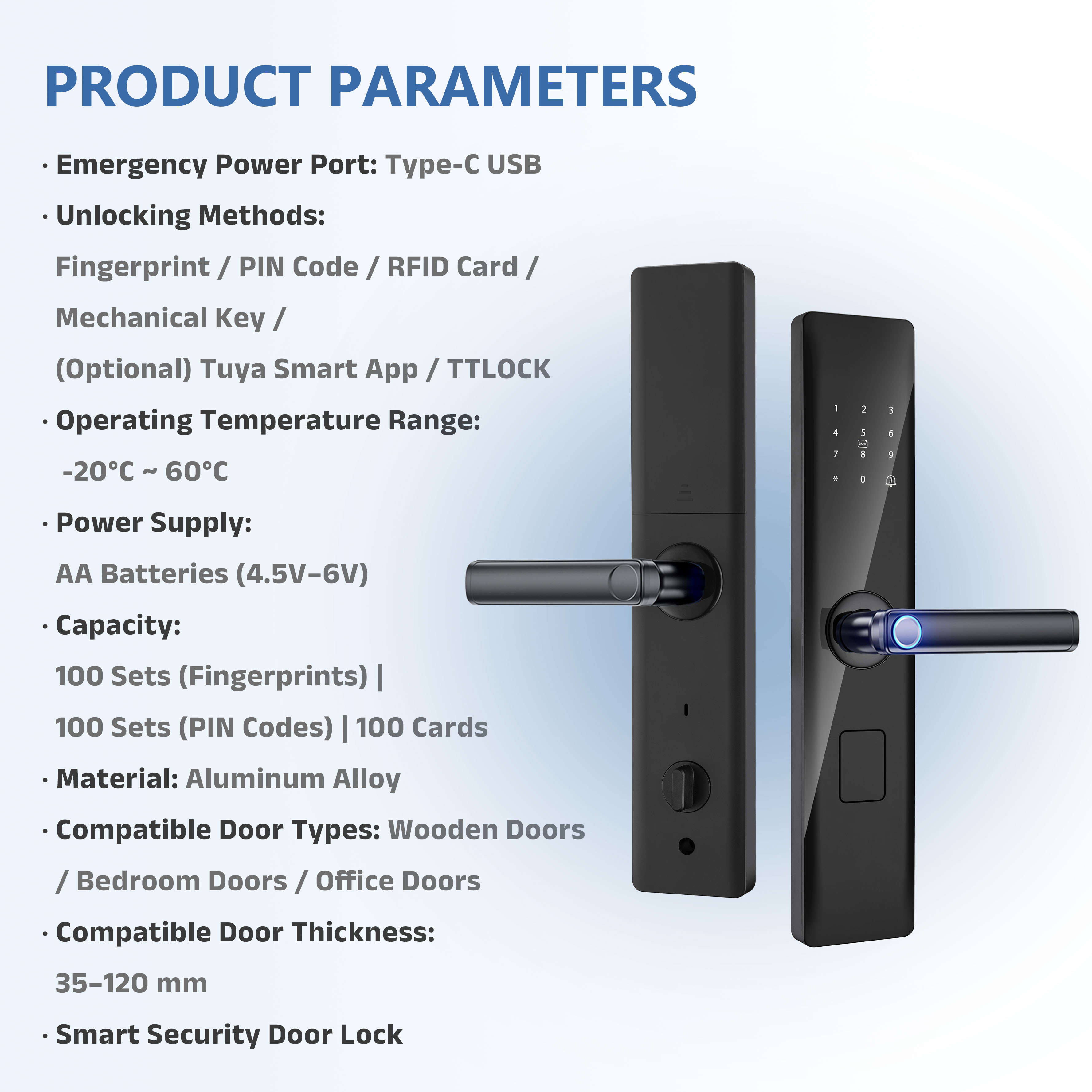

Product Parameters
| Model | Z13 |
| Product Type | Smart Security Door Lock |
| Unlocking Methods | Fingerprint / PIN Code / RFID Card / Mechanical Key / Optional Tuya Smart App / TTLock |
| Emergency Power Interface | Type-C USB |
| Power Supply | AA Batteries, 4.5V–6V |
| Operating Temperature | -20°C to 60°C |
| Capacity | 100 Fingerprints / 100 PIN Codes / 100 Cards |
| Material | Aluminum Alloy |
| Compatible Door Types | Wooden Door / Bedroom Door / Office Door |
| Compatible Door Thickness | 35–120mm |

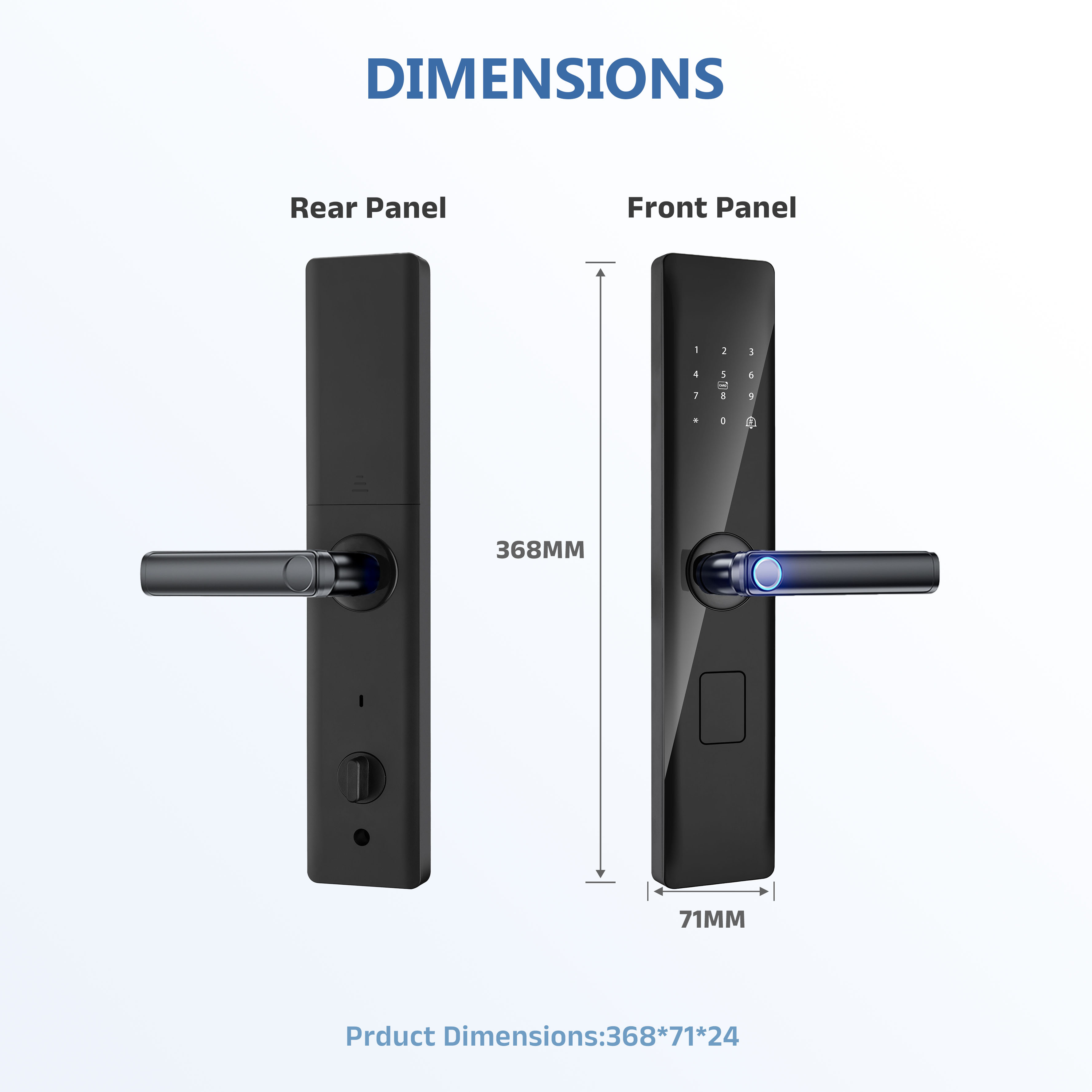

| Product Size | 368mm × 71mm |
Optional Configurations
Fingerprint / PIN Code / Card / Mechanical Key / Tuya Smart App / TTLock
Mortise Size Options
40mm × 388mm (6068)
30mm × 240mm (6068)
24mm × 240mm (6068)
22mm × 160 / 170 / 180 / 240mm (5050)
Application Range
Z13 is suitable for wooden doors, bedroom doors, office doors, apartment doors, rental houses and smart home projects. It is a reliable smart security door lock solution for users who need fingerprint unlocking, password access, card access and optional App control.
